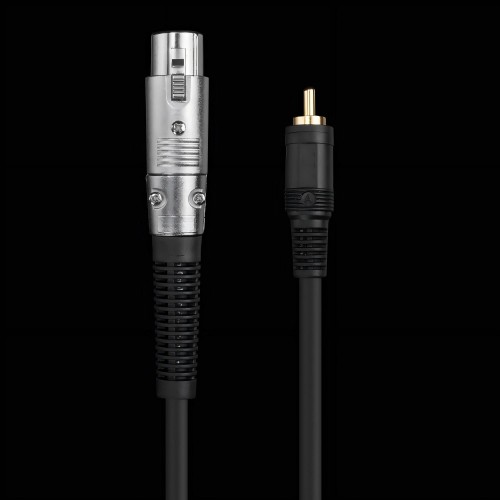

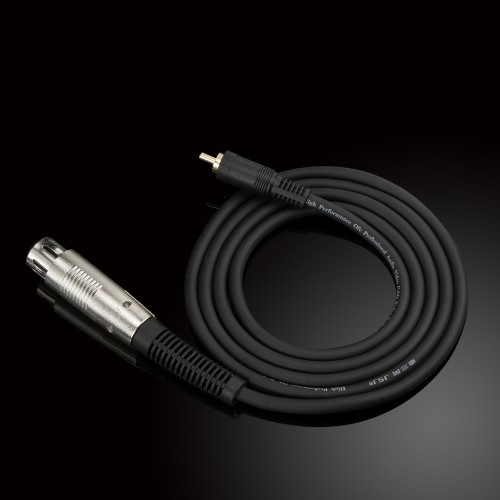

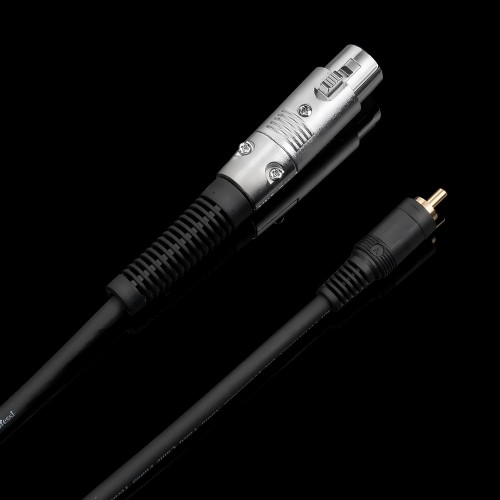

RCA M to XLR F Microphone Cable

Short Description:

This RCA male to XLR female audio cable is a conversion cable designed specifically for connecting consumer or home audio equipment to professional audio systems. One end features a standard RCA male connector, while the other end is a 3-pin XLR female connector. It is commonly used to feed unbalanced output signals from devices such as CD players, amplifiers, and mixing consoles into the balanced input jacks of professional microphone preamps or mixing consoles, ensuring stable signal transmission.

Send email to us

Product Detail

Product Tags

Specification

Item No.	F607
Cond	OFC copper, 26~20AWG
Connector	Zinc alloy+24k gold plate brass
Shield	Al foil +OFC Braid
Jacket	high flex PVC
OD	6.0MM
Color	Transparent brown
Length	0.5m~30m, customizing
Application	Mixing, Console, Microphone, Guitar, Karaoke, CD player, Amplifier

Features

RCA Male Connector: The center pin is gold-plated to effectively prevent oxidation and enhance conductivity and durability. The housing is made of black engineering plastic with an anti-slip texture for easy plugging and unplugging.
XLR Female Connector: The metal housing is rugged and durable, featuring a standard locking mechanism to ensure a secure connection that resists accidental disconnection. The internal contacts are also gold-plated to minimize signal loss.

Application

Product Detail

Product Family

Lightning to 3.5MM Female

USB Type C to 3.5MM Male

Lightning to 3.5MM Male

Production Process

CEKOTECH is an integrated factory with both bulk wire extruding worksite and cable assembly worksite

Bulk Wire Extruding Work Site

In our extruding worksite, we have machines to make solid or stranded conductors.

We can produce single core or multicores cables

We can make high density shield, braid or spiral

There are quite a few jacket material for option: PVC, TPE, PE, PUR, FRNC,LSZH

Cable Assembly Worksite

Bulk wire are cutted, stripped, soldered and assembled to different types of audio video / data cables such as RCA, HDMI, AUX, XLR, speakon and many other.
